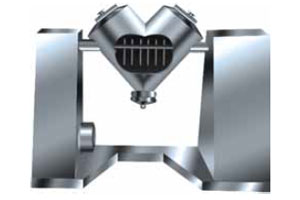

Model VI series forced stirring mixer
This machine can mix fine powder, caked or more two powder raw materials, raw material containing certain moisture. Particularly it can also mix raw material that needs to add small amount of additive and satisfied effect can be got too.
Detailed description
Description：
● Our factory researched and manufactured Model VI forced stirring mixer on the basis of absorbing abroad high technology.
● This machine can mix fine powder, caked or more two powder raw materials, raw material containing certain moisture. Particularly it can also mix raw material that needs to add small amount of additive and satisfied effect can be got too.
Technical parameters：
|
型號 |
生產能力(kg/time) |
全容積(m3) |
混合時間 |
功率 |
筒體轉速(r/min) |
攪拌轉速(r/min) |
外形尺寸 |
重量 |
|
V1-180 |
60 |
0.18 |
2-5 |
1.1×2 |
12 |
500 |
1730×700×1580 |
320 |
|
V1-300 |
80 |
0.3 |
4-10 |
1.1×2.2 |
12 |
500 |
2005×700×1760 |
360 |
|
V1-500 |
130 |
0.5 |
4-10 |
1.1×2.2 |
12 |
500 |
2660×1250×2400 |
600 |
|
V1-1000 |
240 |
1 |
6-10 |
3×2.2 |
12 |
500 |
3220×1500×2840 |
1000 |
