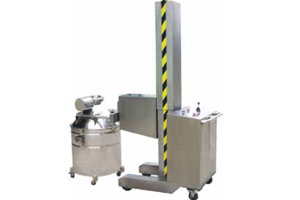

NTY Series Movable Lifting Feeder
Model NTY series mobile lifting charging machine is composed of chassis pushcart and elevator. The elevator consists of frame, hydraulic pressure lifting system and hopper dumping gear in combination of taper hopper, charging basket and butterfly valve equipped with sealing device．
Detailed description
Description：
The lifter researched and manufactured by the company is the newest generation lifting equipment on the basis of digested and absorbed the newest technology of lifting equipment in the world. It uses belt type or chain type to draught and possesses reverse direction preventing, deviation preventing and velometer. It features simple in structure, reliable in use, small in cross section and overall dimensions, good in air tightness, high in lifting height, big in lifting output, high in lifting efficiency, etc.
Description：
Model NTY series mobile lifting charging machine is composed of chassis pushcart and elevator. The elevator consists of frame, hydraulic pressure lifting system and hopper dumping gear in combination of taper hopper, charging basket and butterfly valve equipped with sealing device．
In operation, the taper hopper and the charging basket are locked with sealing. Start up the lifting control rod to lift the hopper and basket. Start up the turning control rod, the charging basket turns 180°, to be bottom-up state. Move the chassis pushcart to connect with charging equipment. Start up the butterfly valve on hopper to charge the material．
Application：
Model NTY movable lifting feeder is mainly applied in conveying， ifting and charging for powdery and granular materials in pharmaceutical enterprises. It can be combined with mixer, granulator, tablet compression machine, coating machine and capsule feeder etc. With the optimum technological process, the pollution and dust are decreased efficiently and the labor intensity is reduced. It is an ideal equipment for enterprise to carry out the GMP production and management. It is also applied in chemical. Light industry and food industry．
